HUUM | SKU:
HIVE Series 12.0kW Sauna Heater Package
Regular price
$6,18200
Unit price
/
Unavailable
Shipping calculated at checkout.
HIVE Series 12.0kW Sauna Heater Package - UKU Local Black ($4,827.00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- Model: HIVE 12STUX Pkg
Got a question?
Got a question?
Send us a message and we'll get right back to you.
HIVE Series 12.0kW Sauna Heater Package
Regular price
From
$6,18200
Unit price
/
Unavailable
The HUUM HIVE series 12STUX Pkg 12.0kW sauna heater package features all the necessities to give your sauna space a touch of modern elegance. This all-inclusive package features UKU control, UKU Extension box, and sauna stones for a long-lasting steam engineered for spaces up to 880 cubic feet (CF).
Heater Specifications
- Kilowatt Rating: 12KW
- Minimum Cubic Feet: 424 CF
- Maximum Cubic Feet: 883 CF
- Diameter: 22" (560mm)
- Height: 29.5" (750mm)
Electrical Requirements
- 240V, Single Phase Amperage: 50 Amps
- Circuit Breaker: 30 + 30
- Wire Size AWG: 10 + 10
Weight
- Heater Weight: 44.1 lbs
- Shipping Weight with Sauna Stones: 596.1 lbs
Control System (UKU)
- Temperature Range: 104 F - 230 F
- Shipping Weight: 20 lbs
Component Dimensions
- Console: 2.2"W x 0.9"D x 4.1"H
- Main Module: 3.5"W x 2.3"D x 5.6"H
Wiring & Sensors
- Display Panel Cable: 9.8 ft (22 AWG)
- Temp Sensor Cable: 16.4 ft (24 AWG)
- Door Sensor Cable: 16.4 ft (24 AWG)
HIVE Series 12.0kW Sauna Heater
- Elegant design
- Suitable for commercial use
- 240V/1PH operation
- For sauna rooms from 424 to 883 cu. ft.
- Works with UKU controls (sold separately)
- Works with UKU extension box (sold separately)
- Large 552-pound stone capacity (Requires 17 boxes) or 463lbs with use of HIVE air tunnel
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 22" Diameter (560mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)3
UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
HIVE Series 12.0kW Sauna Heater
- 12.0kW Sauna heater
- Adjustable legs
- Installation and operation manual
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty

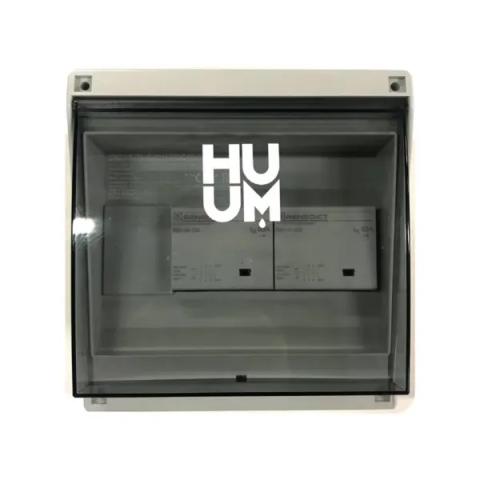

Extension Box
- For use with UKU controls
- For heaters over 11kW
- Dimensions: 7"W (178mm) x 6"D (152mm)7"H (178mm)
Stones 24
- 552 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
